PIC16F877 NIXIE CLOCK CIRCUIT CCS C

Nixie clock circuit software 16F877 ccs c prepared by the controller based on the display indicating that circuit anyway `at 2 Lamp made ​​with Nixie do not have any information about the project and schema files are available in… Electronics Projects, PIC16F877 Nixie Clock Circuit CCS C “ccs c examples, microchip projects, microcontroller projects, pic16f877 projects,

Nixie clock circuit software 16F877 ccs c prepared by the controller based on the display indicating that circuit anyway `at 2 Lamp made ​​with Nixie do not have any information about the project and schema files are available in source c

In response to a request from a student, I made a Nixie clock using the Nixie tube. I have a lot of Nixie tube of Hitachi in hand, but I used the (NEC) LD-955A used this time. Driving circuit in the static display using the 74141, the control uses the PIC16F877 you are taught in school, I tried formed a soft CCS-C. Since using XTCO the main clock, it does not slip off one second even after one month.

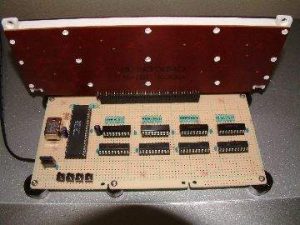

PIC16F877 CCS C NIXIE CLOCK PROJECT
